UK FESKS/Fiske water quality onlinetotalHardness Analyzer FOSTCO 5000 IQ Adopt titration colorimetric method, fully automatic, compact design, for automatic determination of content in process waterTotal hardness, residual hardnessOrcarbonate hardness。The instrument has a built-in self-calibration program, making it a reliable, accurate and fully automatic analyzer.
Used in: tap water, boiler water, pharmaceuticals, chemicals, semiconductors and other reverse osmosis system purified water industries.
Product characteristics
Reliable, accurate and fully automatic analyzer
Monitor a programmable limit
Total hardness or carbonate hardness can be measured with the same analyzer
Simple debugging through the configuration wizard
BOB operation (72 hours)
Self-calibration and self-monitoring
Easy to maintain and clean
Compact design
Colorful, multilingual graphic display
Relay output
Relay output for error message
Analog output of measured values or status information 0/4 - 20 mA
Digital inputs used to start analysis, flow switches, or interval relocations
Measurement data memory and measurement data protocol on SD card
No condensation in the optical system
Update software via SD card
Water quality online hardness analyzer There are two versions of the FOSTCO 5000 IQ

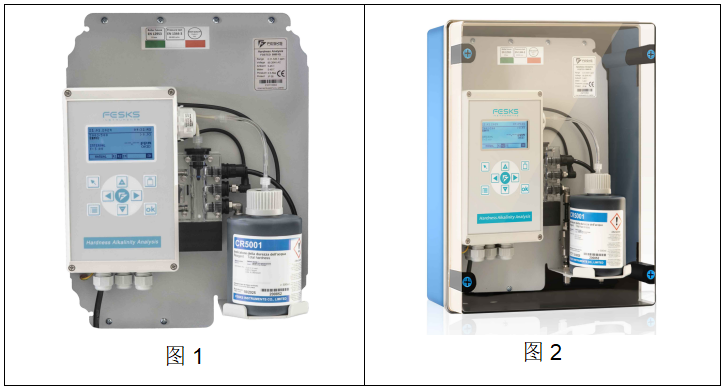

Wall mounted analyzer Figure1
The analyzer consists of a controller and a measurement chamber. Both are mounted on brackets on a wall. This version is fully functional, including water inlet and outlet connections and a holder for reagent bottles.
shell analyzer Figure2
For wall-mounted analyzers, there is a plastic housing that can be used to use the analyzer in locations where more contamination is expected. The analyzer on the wall stand can be used4 screws are quickly installed in the housing. If the analyzer is ordered with the housing, the equipment is already installed in the housing.
Technical parameters totalHardness analyzerFOSTCO 5000IQ
Parameters. | Value/Scope |
Measuring method | titration colorimetry(Titration of color change) |
measurement modelWai | Total hardness:0.21-535.7 ppm CaCO3 Total alkalinity:5.4-401.8 ppm CaCO3 (carbonate hardness) |
Precision of measurement | The ± value is 5% of the maximum reading of the reagent used respectively |
Accuracy. | ± value is 2.5% of the maximum reading of reagent used |
reagent consumption | is about0.05-0.5ml/analysis, depending on the water hardness measured |
analysis cycle | continuous measurement/Interval measurement (5-360min)/External control |
measurement duration | is about3 minutes, depending on the hardness of the water and the set rinsing time |
Number of analyses | At low water hardness,500mlReagent can be performed10,000 analyses. Consumption depends on the hardness of the water being measured and the reagents used. |
water consumption | is about1 liter/analysis, with 2 bar, water consumption depends on inlet pressure and set flushing time. |
relay output | 250VAC 1A, as potential free output NC/NO, Function: limit alarm, equipment error, standby |
signal input | Electrically separated contact input, start analysis, flow switch, interval reset |
Analog output | 0-20mA/4-20mA resolution: |
Unit of measurement | ppm CaC03、mmol/L、°dH、°f、°e |
supply voltage | 85-305VAC(47…440 Hz),24VAC/DC optional |
Power consumption | 25W(in operation) 3.5W(spare) |
load capacity | terminal5 to 8 Relay load capacity with internal current of 1A Relay load capacity with external current of 2.5A |
size weight | Without enclosure:280x360x113mm(WxHxD) approximately 1.9kg tape casing:315x390x130mm(WxHxD) approximately 3.8 kg |
Storage temperature | 0°℃-45℃ |
Ambient temperature | 10℃-45 ℃ |
measure water temperature | 5℃-40℃ |
Air humidity | 20- 90% RH (no ice or condensed water) |
Protection grade | Opening wall installation IP43, installed in box IP56 |
Water quality requirements when measuring water hardness
pH： 4 - 10
Chief Iron: < 3 ppm
Copper: < 0.2 ppm
Aluminum: < 0.1 ppm
Manganese: < 0.2 ppm
Capacity of acid: KS 4.3 < 5 mmol/l
Order description
Order number | Model | Description |
60-5000-20 | Fostco 5000IQ | Intelligent online hardness analyzer |
60-5000-21 | Fostco 5000ZY | Professional online hardness analyzer(1 more RS485/2 more channels of 4-20mA than the smart model) |
hardness/Alkaline reagent measurement unit and range
